| Chassis |
| Frame |
Tubular steel trellis |
| Wheelbase |
1410 mm - 55.5 in |
| Rake |
23,5° ÷ 24,5° |
| Front suspension |
Ohlins with TiN upside-down fully adjustable fork |
| Front wheel travel |
127 mm - 5 in |
| Front brake |
2 x 320 mm semi-floating discs, 4-piston 4-pad calipers |
| Front wheel |
Marchesini 5-spoke light alloy 3.50 x 17 |
| Front tyre |
120/70 ZR 17 |
| Rear suspension |
Progressive linkage with adjustable Ohlins monoshock |
| Rear wheel travel |
130 mm - 5.1 in |
| Rear brake |
220 mm disc, 2-piston caliper |
| Rear wheel |
Marchesini 5-spoke light alloy, 5.50 x 17 |
| Rear tyre |
190/50 ZR 17 |
| Fuel tank capacity |
17 l (including 4 l reserve) |
| Weight * |
198kg -- 435 lbs |
| Seat height |
790 mm - 31.1 in |
| Instruments |
Speedometer, rev counter, indicators for high beam, turn
signals, warning light for low oil pressure, fuel level, warning
light for neutral, water temperature |
| Warranty |
2 years unlimited mileage |
| Color |
Rosso Anniversary Ducati - Ducati Anniversary Red 473.101 (PPG);
metal-color frame and wheel rims. |
| Versions |
Single-seat / Dual-seat |
| * = The weight includes battery,
lubricants and, where applicable, cooling liquid. |
| Type |
L twin cylinder, 4 valve per cylinder Desmodromic; liquid cooled |
| Displacement |
998 cc |
| BorexStroke |
100x63.5 mm |
| Compression Ratio |
11.4:1 |

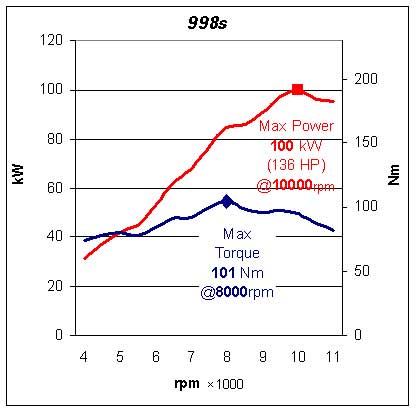

| Power |
100 kW - 136 HP @ 10000 rpm |
| Torque |
101Nm - 10.3 kgm @ 8000 rpm |
| Fuel injection |
Marelli electronic fuel injection, 54 mm throttle body |
| Exhaust |
2 aluminum mufflers by Termignoni |
| Transmission |
| Gearbox |
6 speed |
| Ratios |
1st 37/15, 2nd 30/17, 3th 28/20, 4th 26/22, 5th 24/23, 6th 23/24 |
| Primary drive |
Straight cut gears; ratio 1.84 |
| Final drive |
Chain; Front sprocket 15; Rear sprocket 36 |
| Clutch |
Dry multiplate with hydraulic control |
|
|
 |
 |
|
 |
 |
 |
|
* referred to
http://www.speedfreaks.info/2002998.htm |
|
Testastretta
Cam Specifications
|
|
CAM PAIRING |
INLET OPEN |
INLET CL |
EXH OPEN |
EXH CL |
DURATION |
CENTERLINE |
MAX LIFT |
STD VALVES |
|
IN |
EXH |
INLET |
EXH |
IN |
EXH |
INLET |
EXH |
|
749 |
15 |
46 |
53 |
11 |
241 |
244 |
105.5 |
111 |
10.1 |
9.1 |
37 |
30.5 |
|
749S '04 |
23 |
55 |
62 |
24 |
258 |
266 |
106 |
109 |
11.4 |
10.21 |
38 |
30.5 |
|
REVISED |
21 |
57 |
66 |
20 |
258 |
266 |
108 |
113 |
11.4 |
10.21 |
|
|
|
749R |
21 |
53 |
60 |
20 |
254 |
260 |
106 |
110 |
13 |
11.5 |
39.5 |
32 |
|
998 |
4 |
56 |
53 |
11 |
240 |
244 |
116 |
111 |
10.15 |
9.1 |
40 |
33 |
|
998S |
16 |
60 |
60 |
18 |
256 |
258 |
112 |
111 |
11.71 |
10.13 |
40 |
33 |
|
999R ‘05 |
21 |
53 |
60 |
20 |
254 |
260 |
106 |
110 |
13 |
11.5 |
42 |
34 |
|
1098 |
15 |
58 |
60 |
20 |
253 |
260 |
111.5 |
110 |
11.8 |
10.6 |
42 |
34 |
|
|
