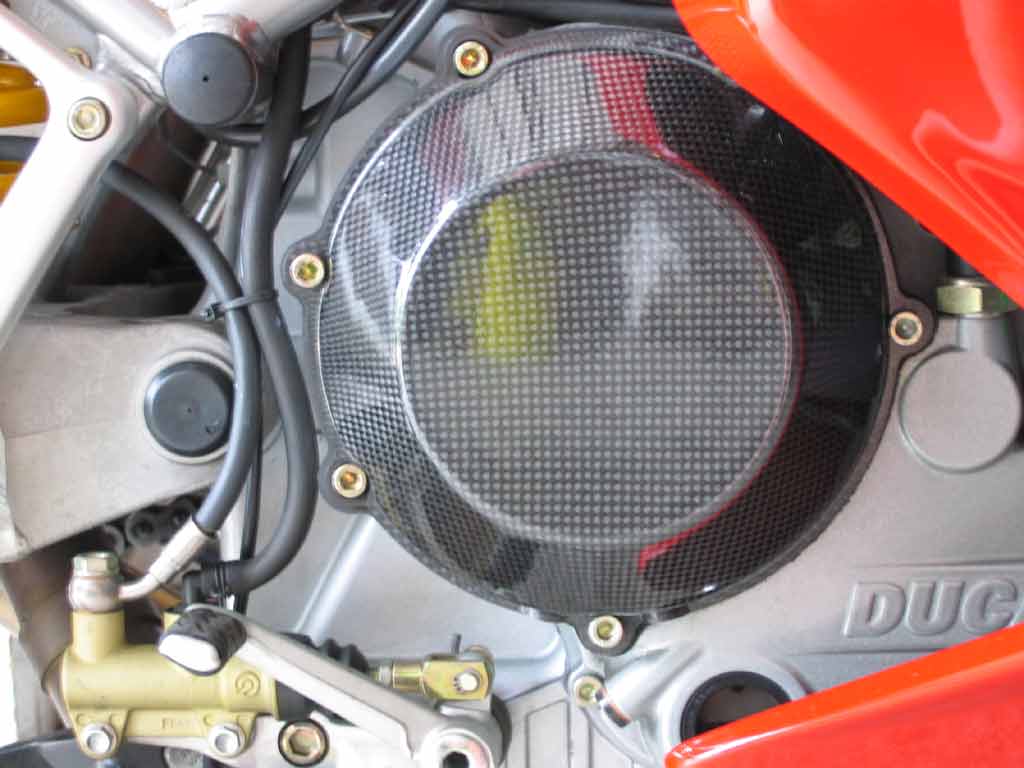

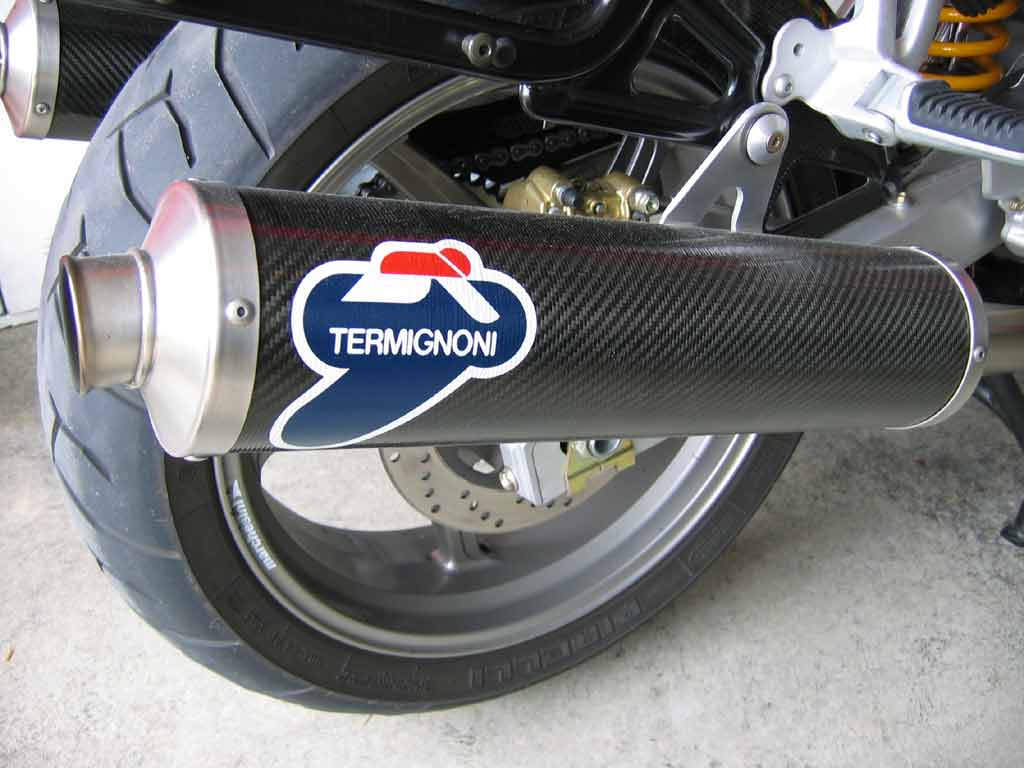

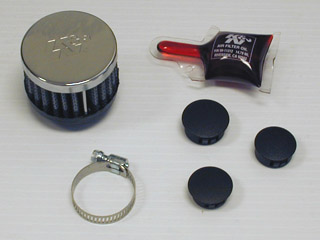

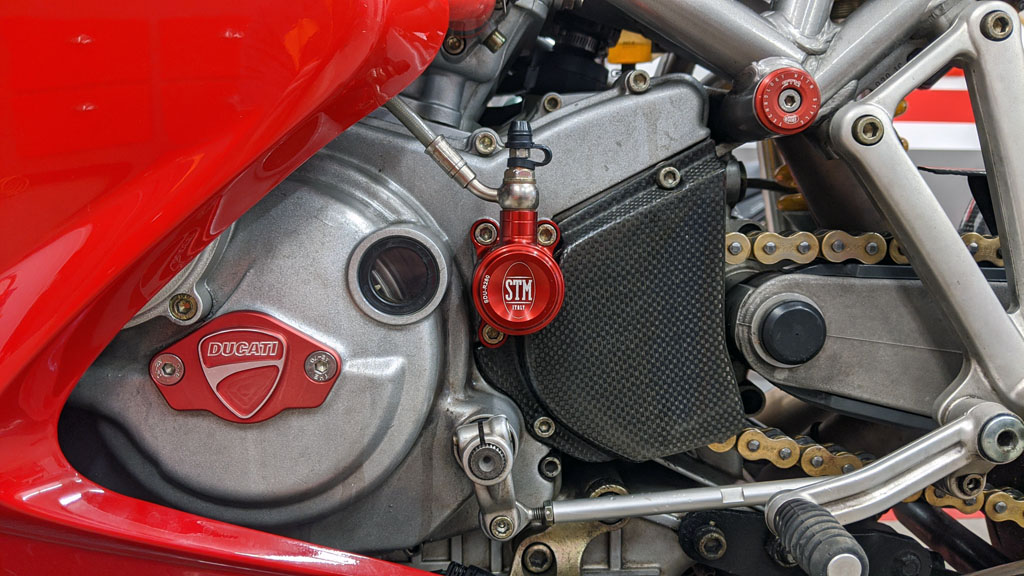

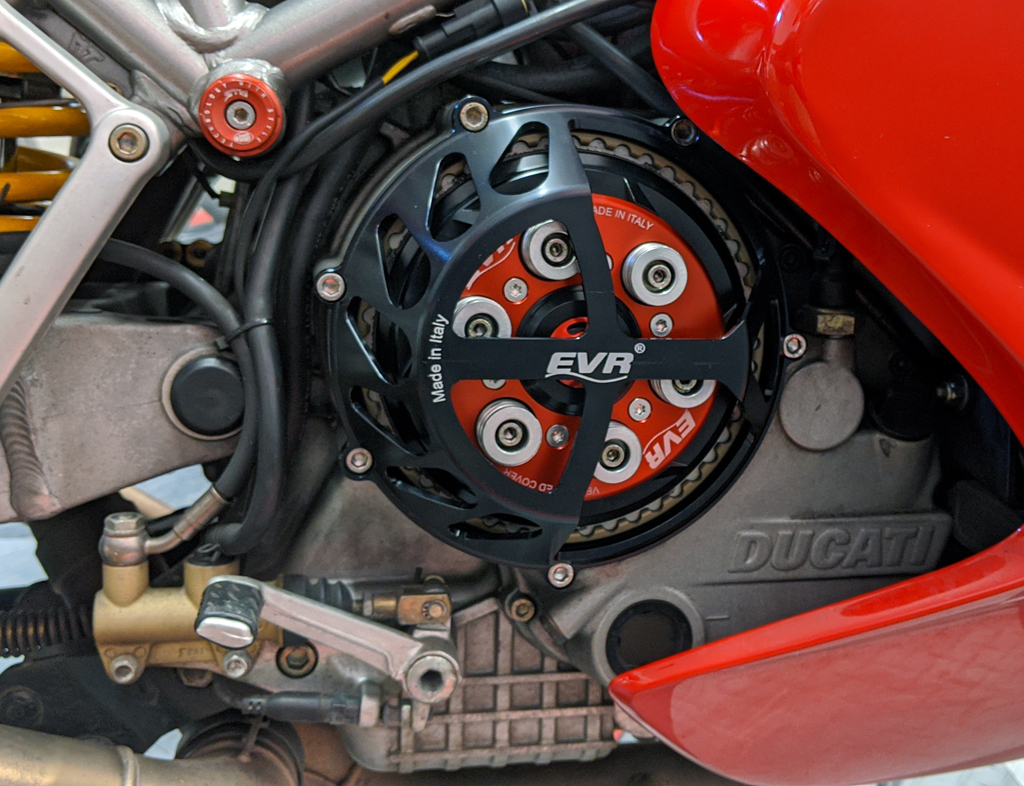

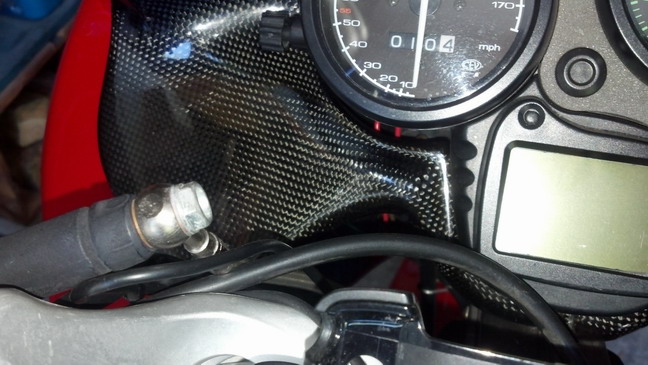

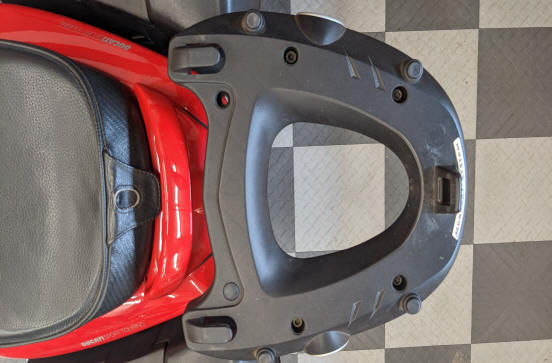

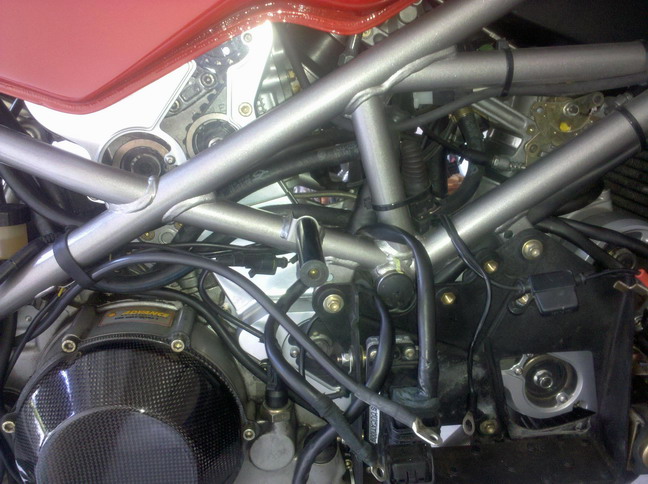

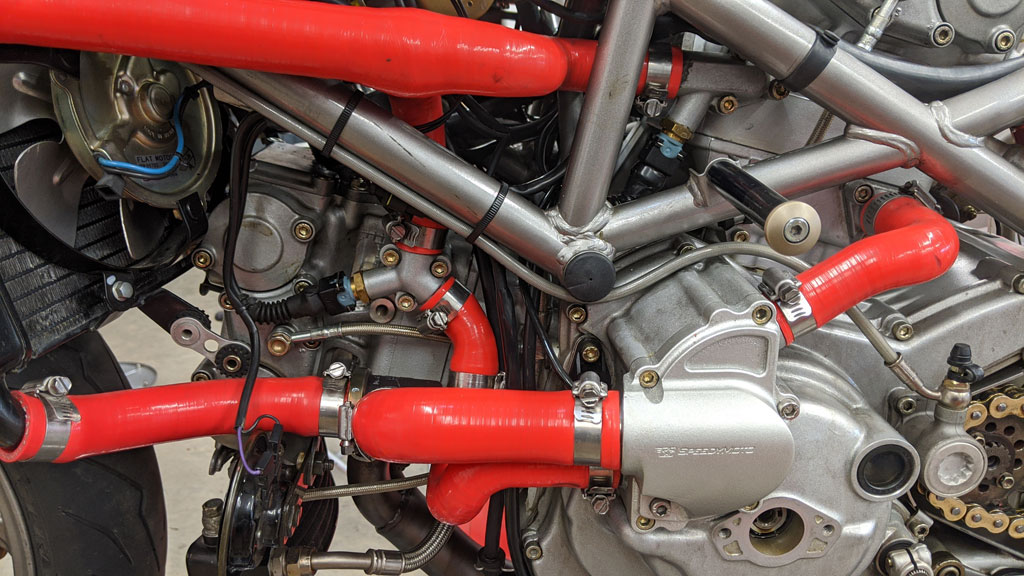

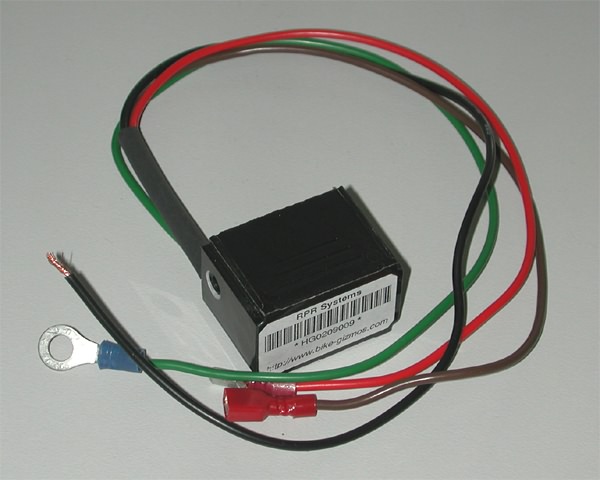

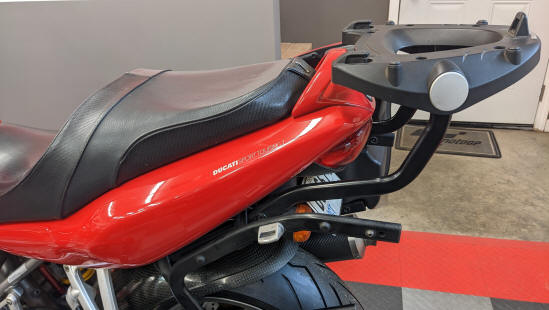

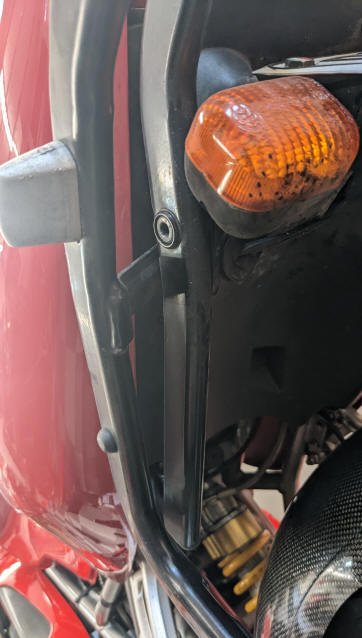

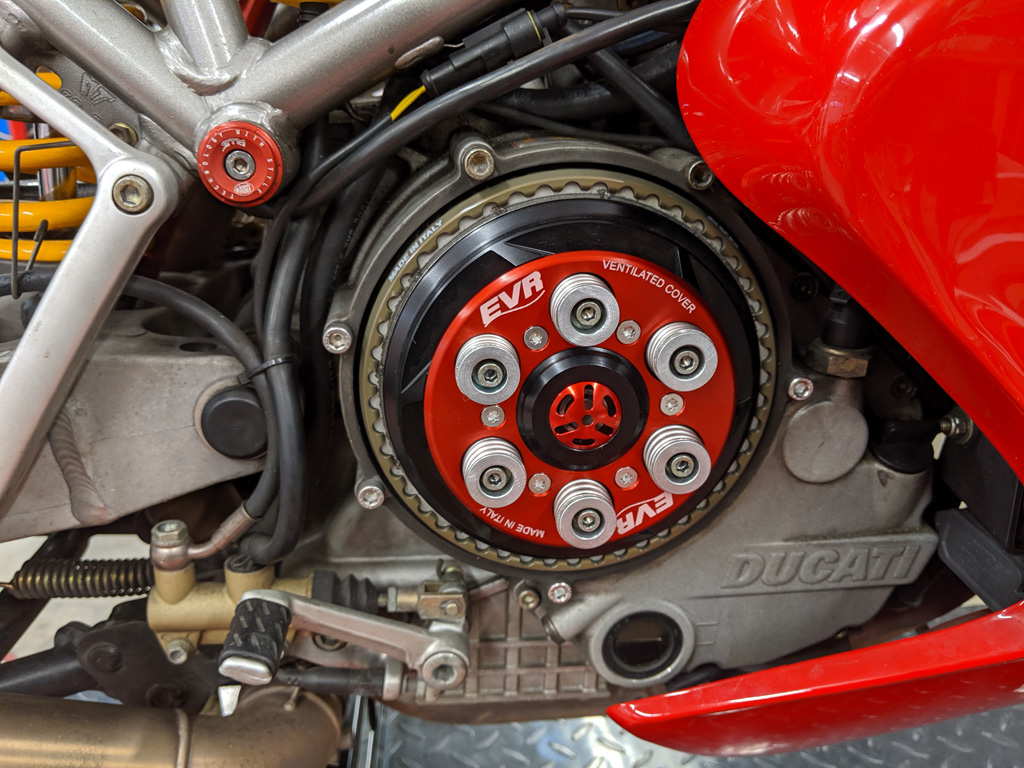

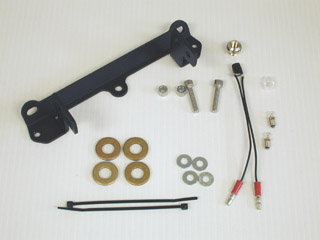

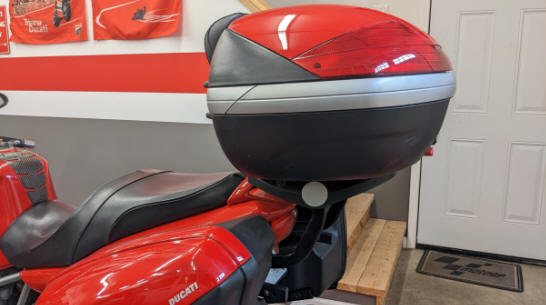

[Headlight Gizmo -- Web site no longer active :( ]

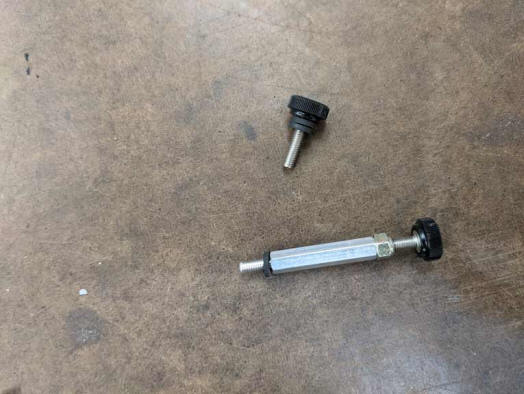

Additional modification by adding DesmoTimes short stalks

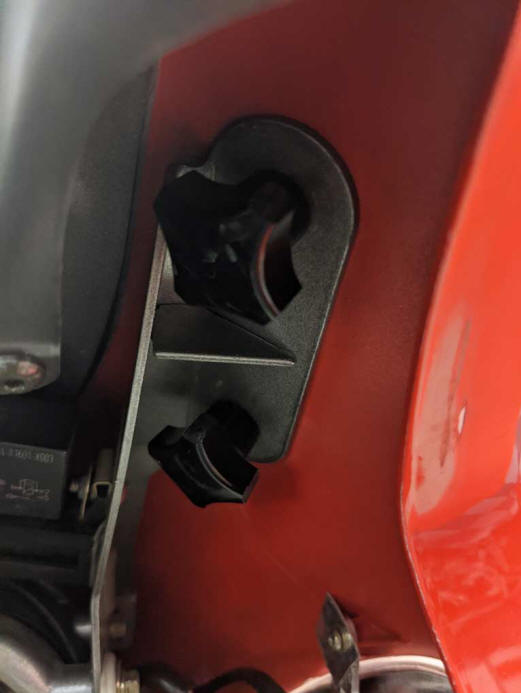

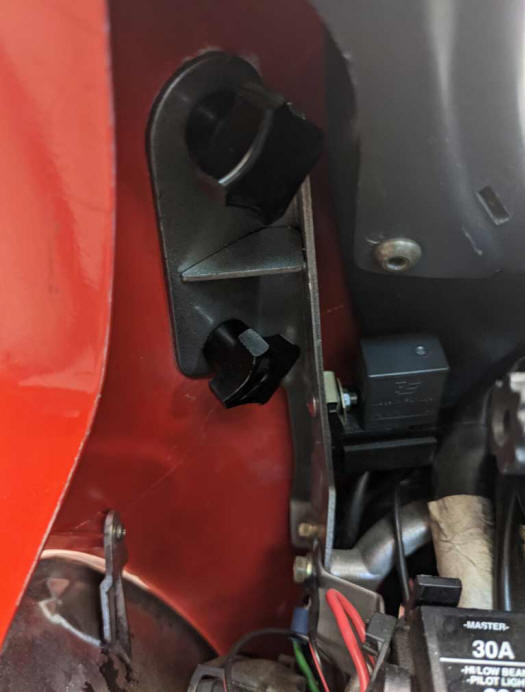

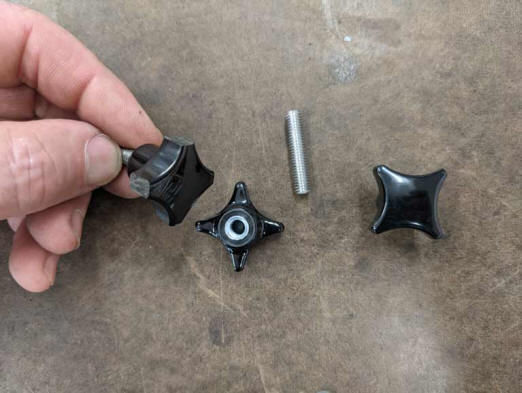

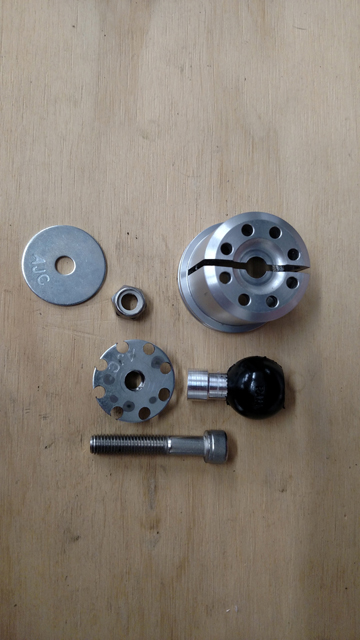

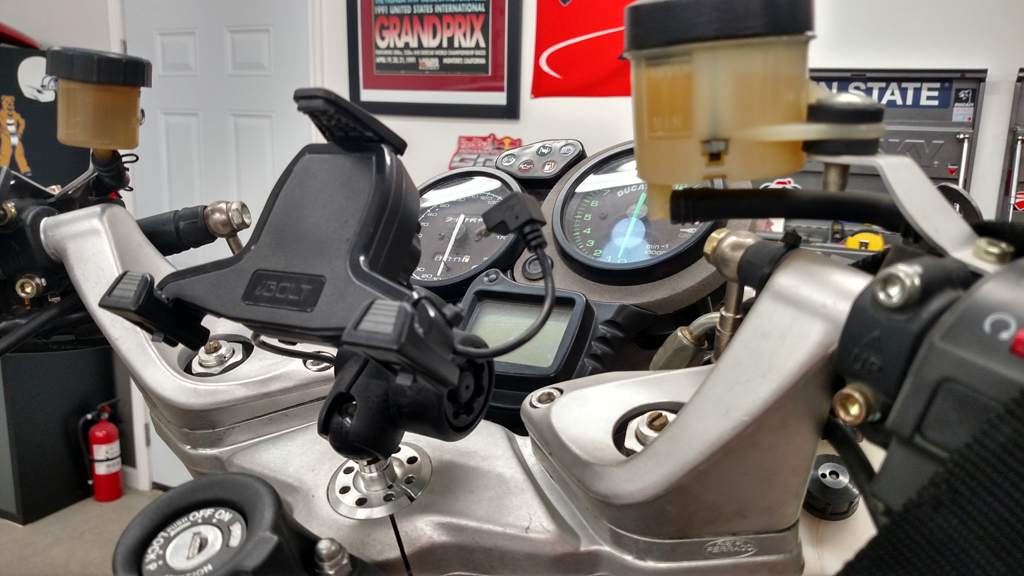

Bore hole in steering stem nut, I used 8mm socket head bolt to bolt the ram mount through the steering stem nut to a washer and lock nut. The hollow triple will let you get a socket with extension on the lock nut. For my 998s FE, I tacked a nut to a washer that I drilled out to match the steering stem nut so that it can be held in place while torque applied to the socket bolt. Works like a champ!!!

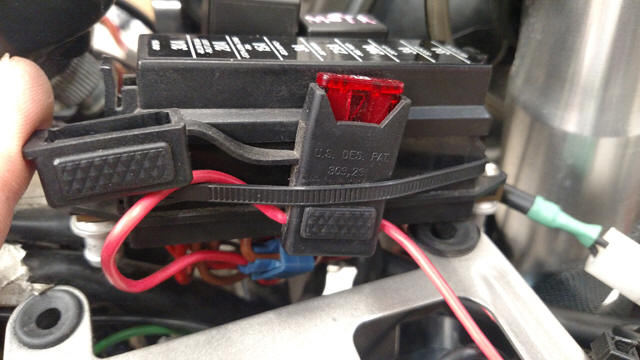

Power is tied in via USB power converter tapped to switched 5A available circuit at fuse panel.

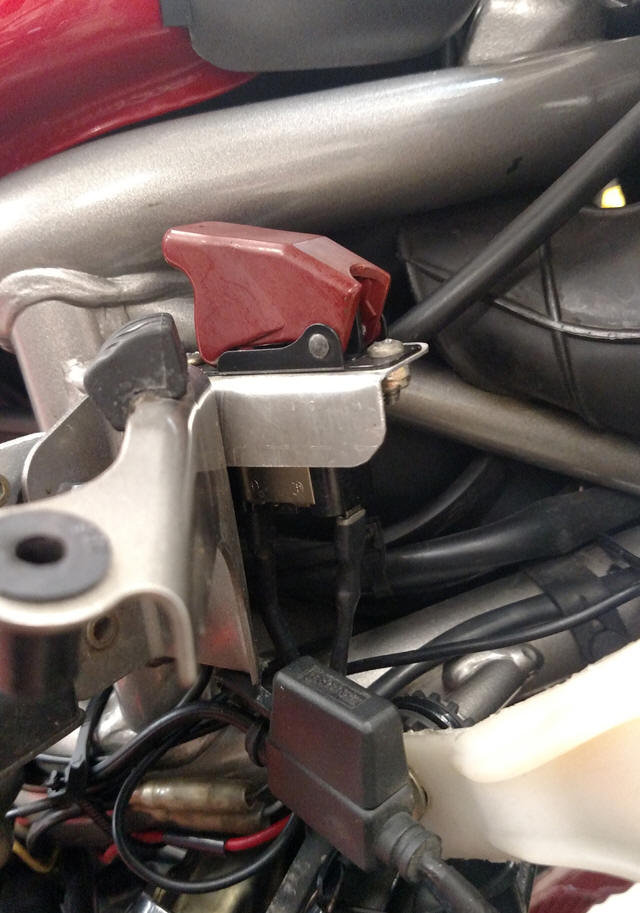

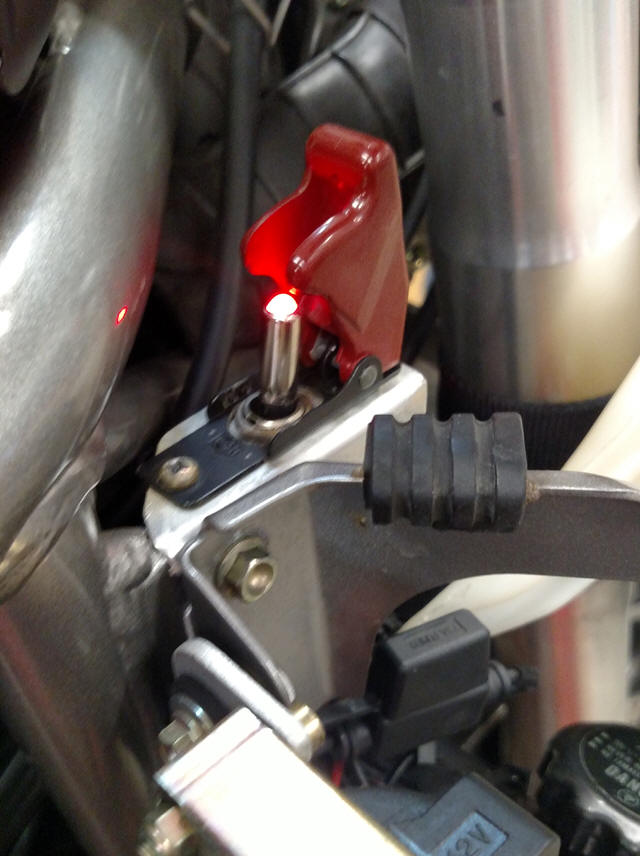

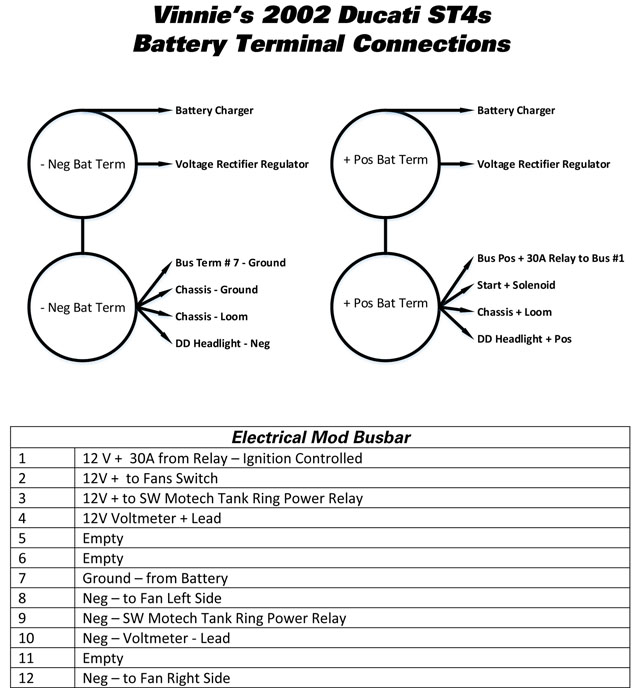

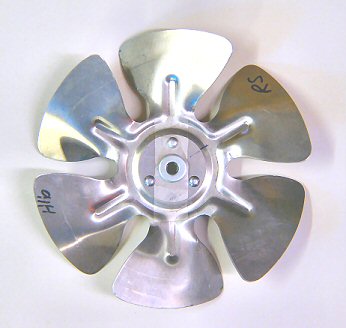

Located on right side of radiator, power is controlled by the covered fan switch (Mod 13) and fed through new switched power busbar, 30A relay feeds ignition switched power.
All Balls Tapered Bearings installed. As noted By LT of Desmo Times, the seals included in the All Balls kit if not installed according to his instructions, will fail. The reason is that the seals are not designed specifically for this Ducati application and the rubber portion extends inward on radius to interfere with spacer which has an exterior diameter of 48mm. While the inner portion of the rubber on the seal is 46mm in diameter and causes the rubber seal to tear when the steering head is rotated. See the photos below with measurements. My preference was to install the bearings with fresh Ducati OEM seals and spacers. The originals get damaged when removing the lower race from the steering stem.

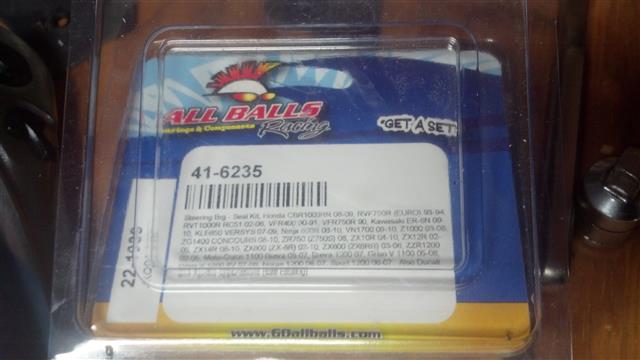

-- All Balls kit

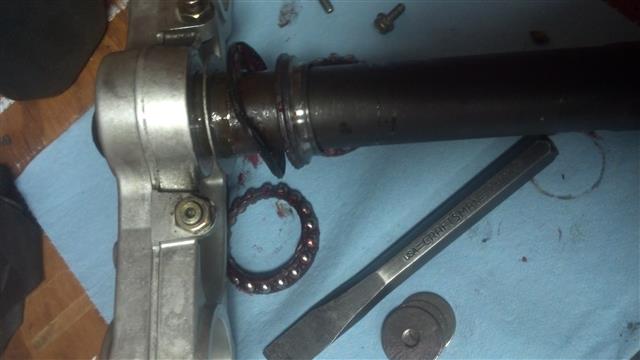

Once the stem is removed, use a cold chisel to slowly free the inner race from the steering stem. You will note the black rubber seal and metal does get bent, sacrifice...

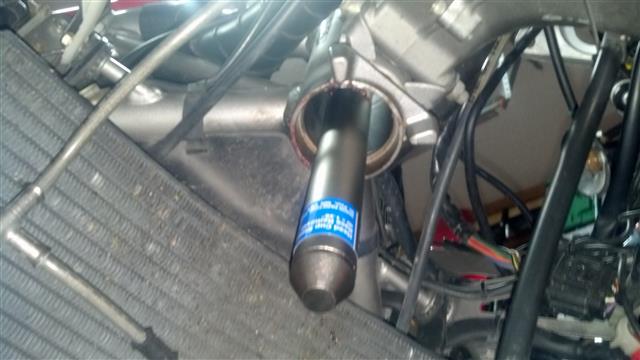

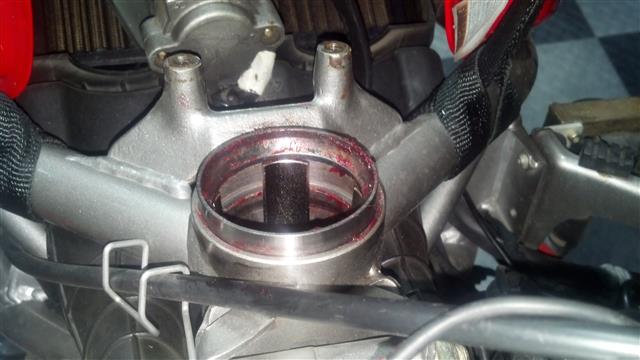

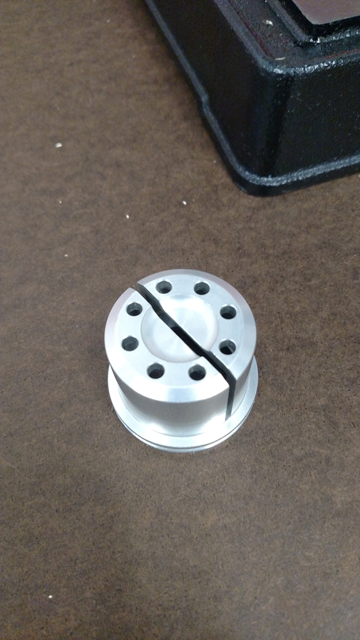

Photos of the tool in action used to remove the outer races from the head stock

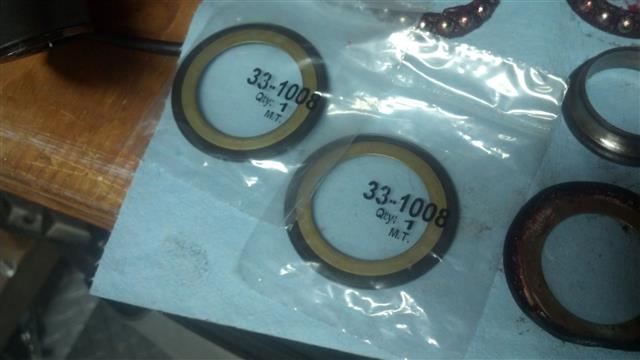

Seals included in the All Balls Kit

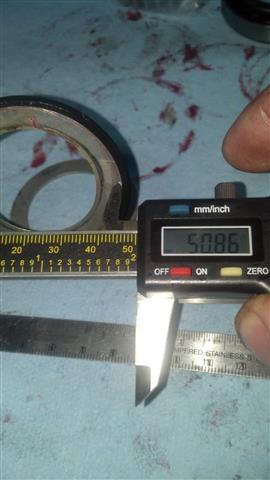

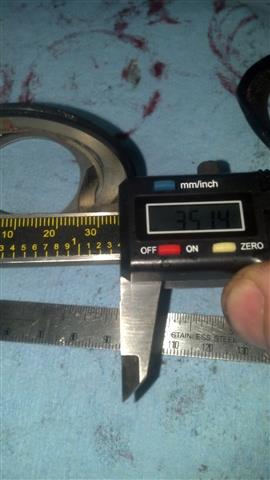

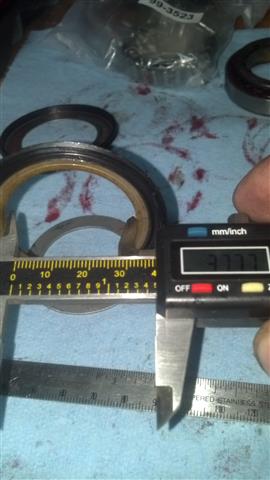

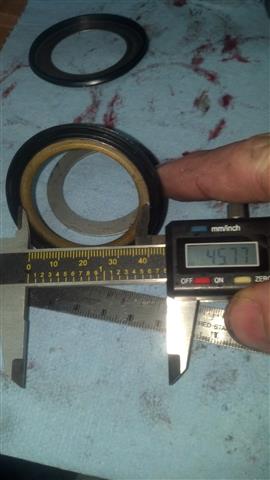

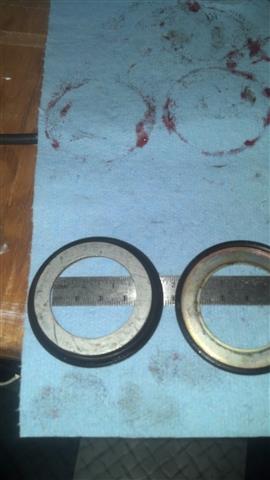

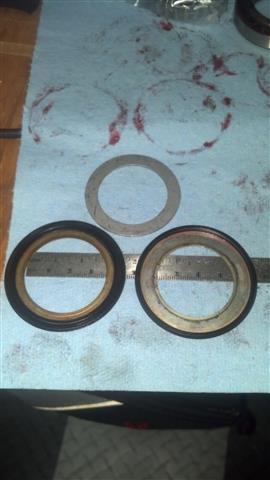

(LT of Desmo Times recommends installing the lower one upside down) I recommend not using the included seals but instead buying Ducati OEM seals and using those. Note the differences in measurements below:

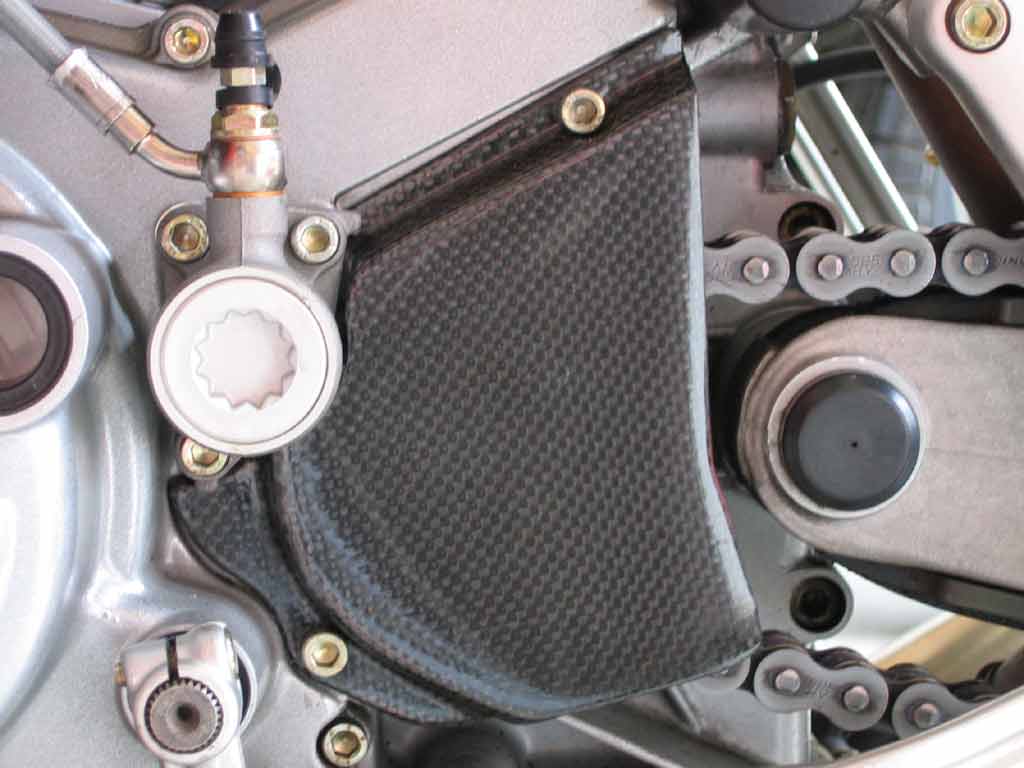

A somewhat common issue in the ST is Output Shaft wear in the channel caused by front sprocket retention plate, I am convinced it is due to misaligned chain! It has been said time and time again, do not trust the swing arm alignment marks! I also noted this in the "Maintenance and Issues" section but this is pretty important and can potentially cause a significant cost to repair. This idea is taken from US Desmo article, from the Spring 2011 issue of "Desmo Leanings" found here, or local pdf copy you can download. Recommend grinding the teeth off of the donor sprocket before machining it to size.

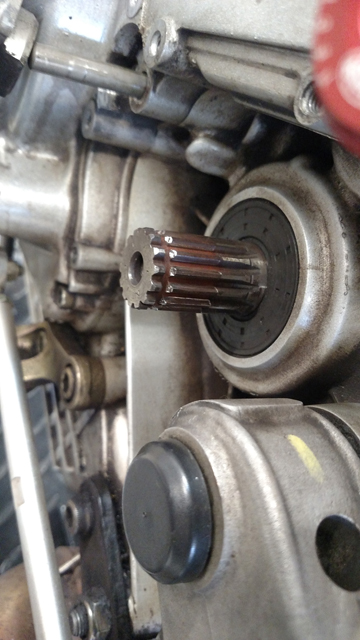

Output Shaft with wear on the inboard side of the channel; Spacer fitted and shown as installed without chain, and photo of the donor sprocket:

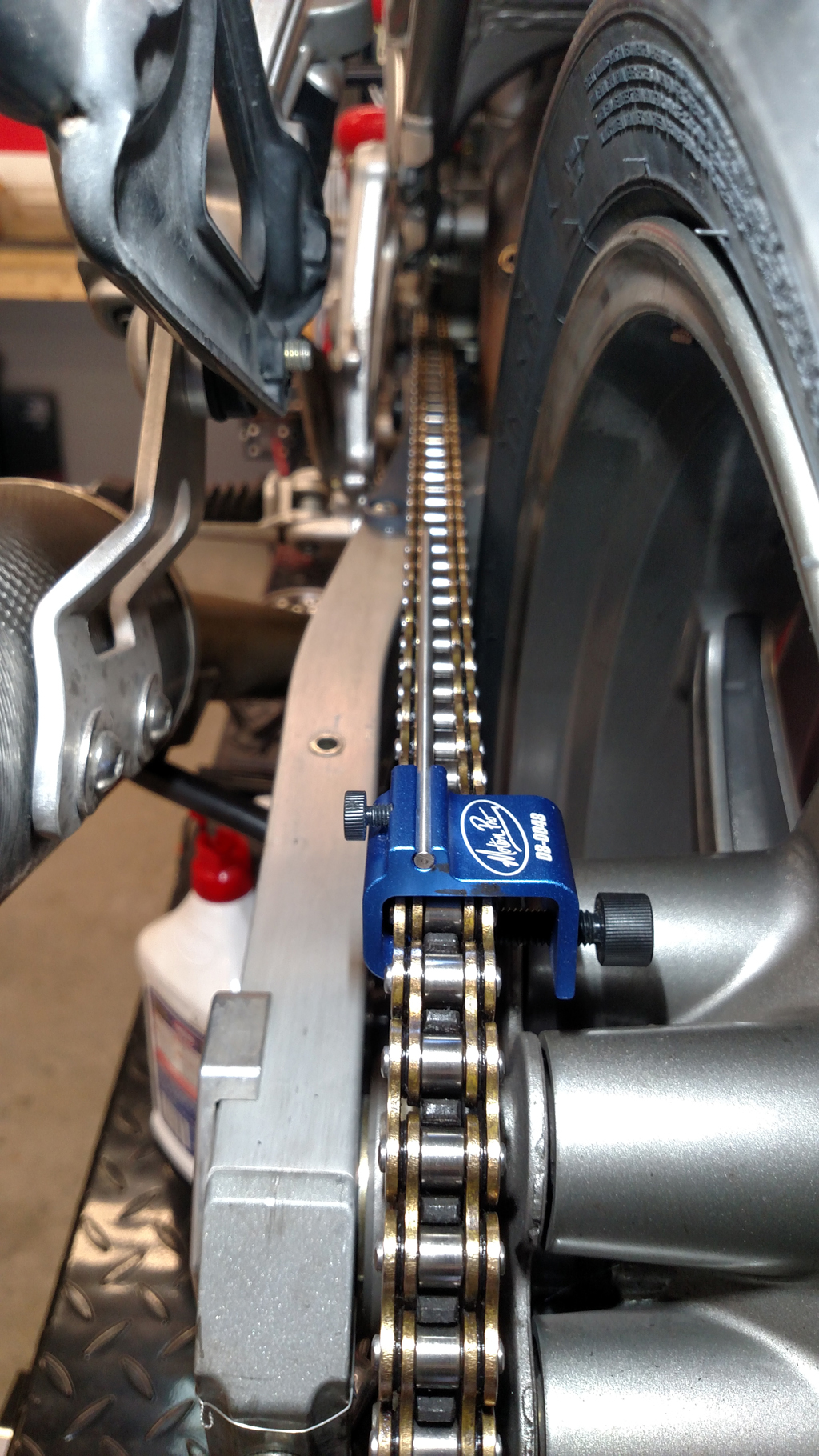

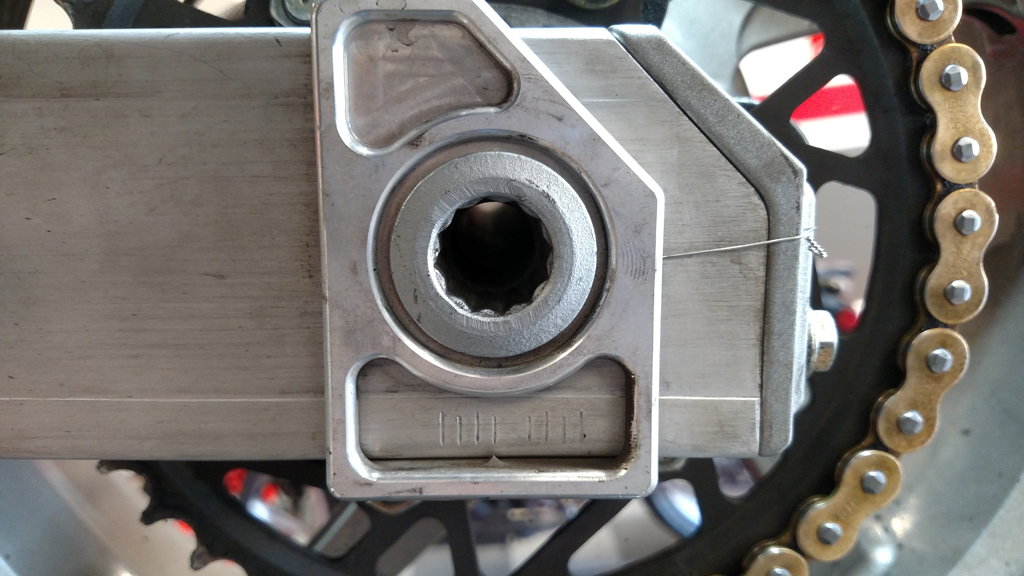

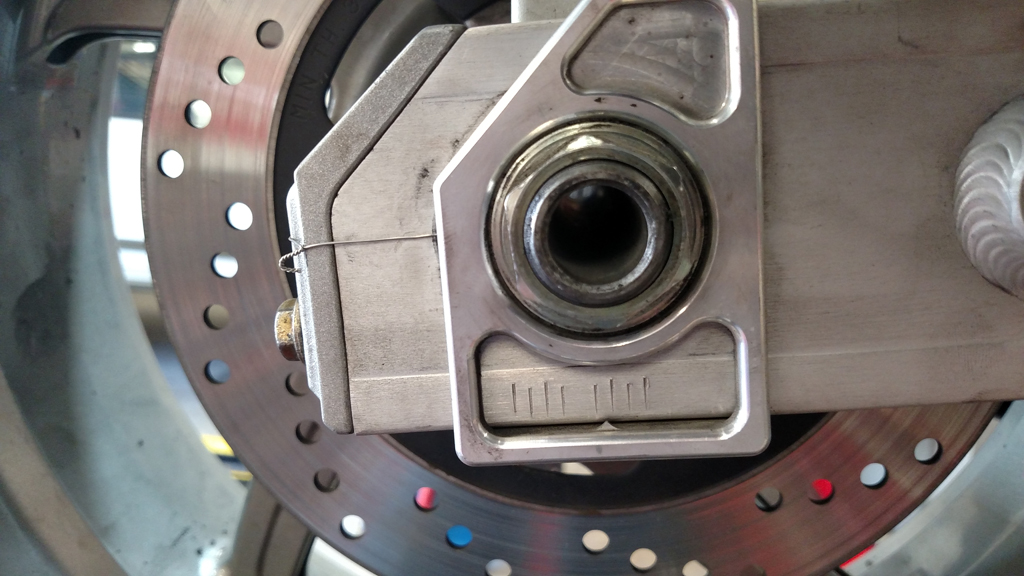

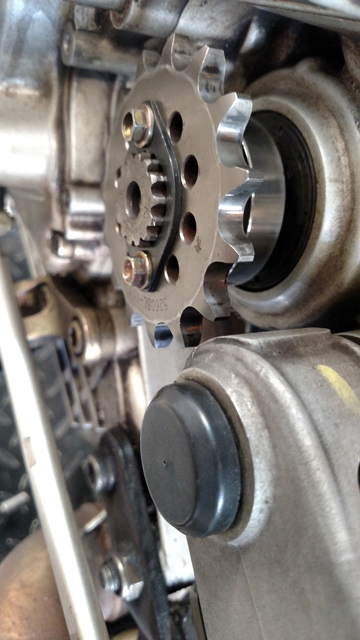

Chain installed and aligned... note the swing arm alignment mark differences!!! (click on photo for higher res view)

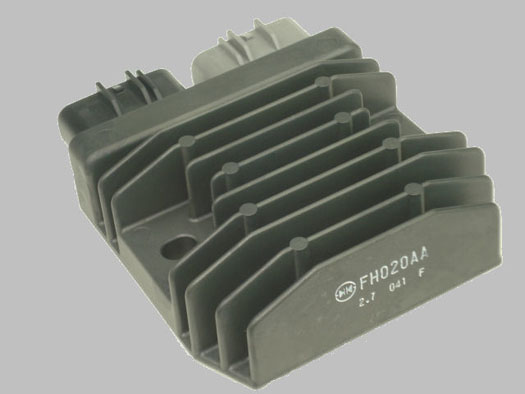

Purchased from http://www.roadstercycle.com/index.htm

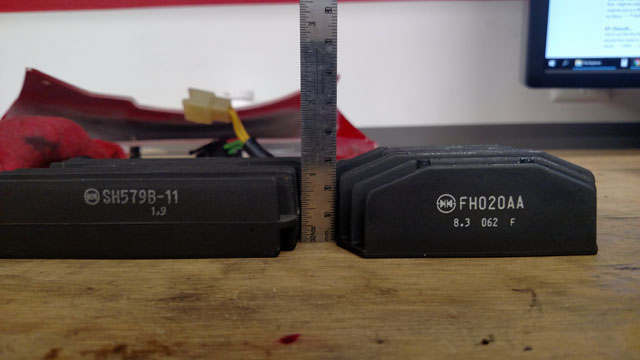

It is taller than the OEM, so install it in the intake portion of the nose, I did grind the cooling fins down to about same height as OEM. The fins are aluminum, it didn't seem to mind.

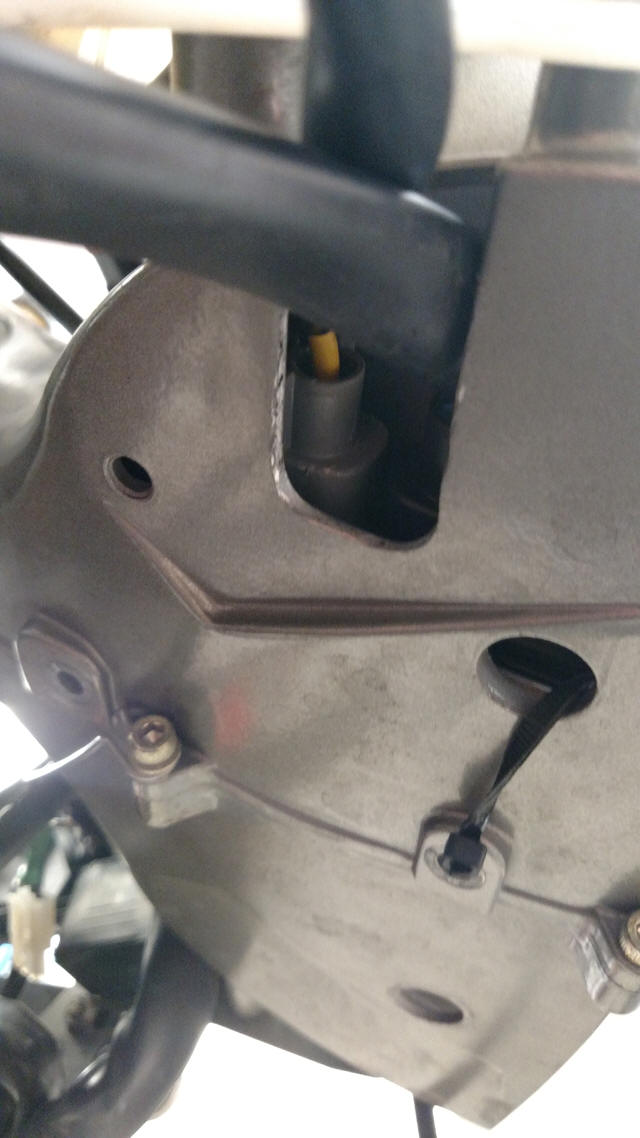

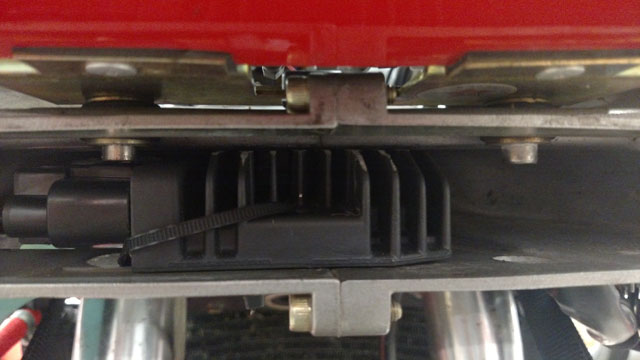

Installed in the intake below headlight, I did enlarge the hole that the cable passes through so that the large connectors will pass through. Also, getting the OEM bolt hole to align was not going to happen. Instead of the bolt, I just used a zip tie to retain it in position.
You can see the bare aluminum in the photo below where I did grind the fins to allow it to fit in the intake, approximate stock position. I took a little over 5mm of material off.

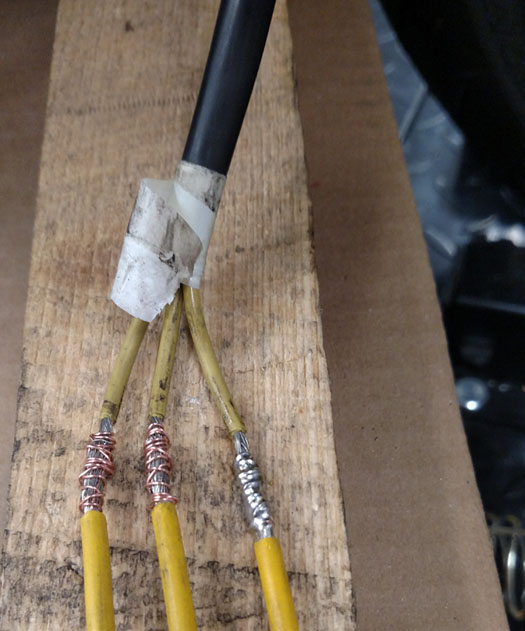

Spliced the yellow wires into the Ducati wire harness, shrink wrapped then covered in 3/8" black PVC sleeve.

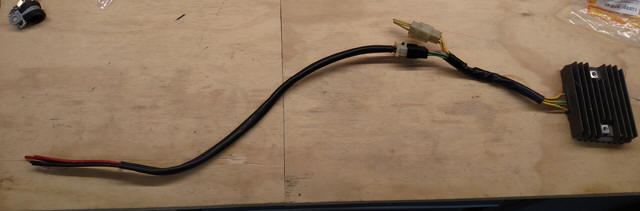

I cut back the 4 wire (2 x red and 2x Black) and then terminated with shrink wrap, secured back in OEM PVC sleeve. This is the removed OEM VRR, with ethe connectors, you can see how much wire I cut from the stock loom

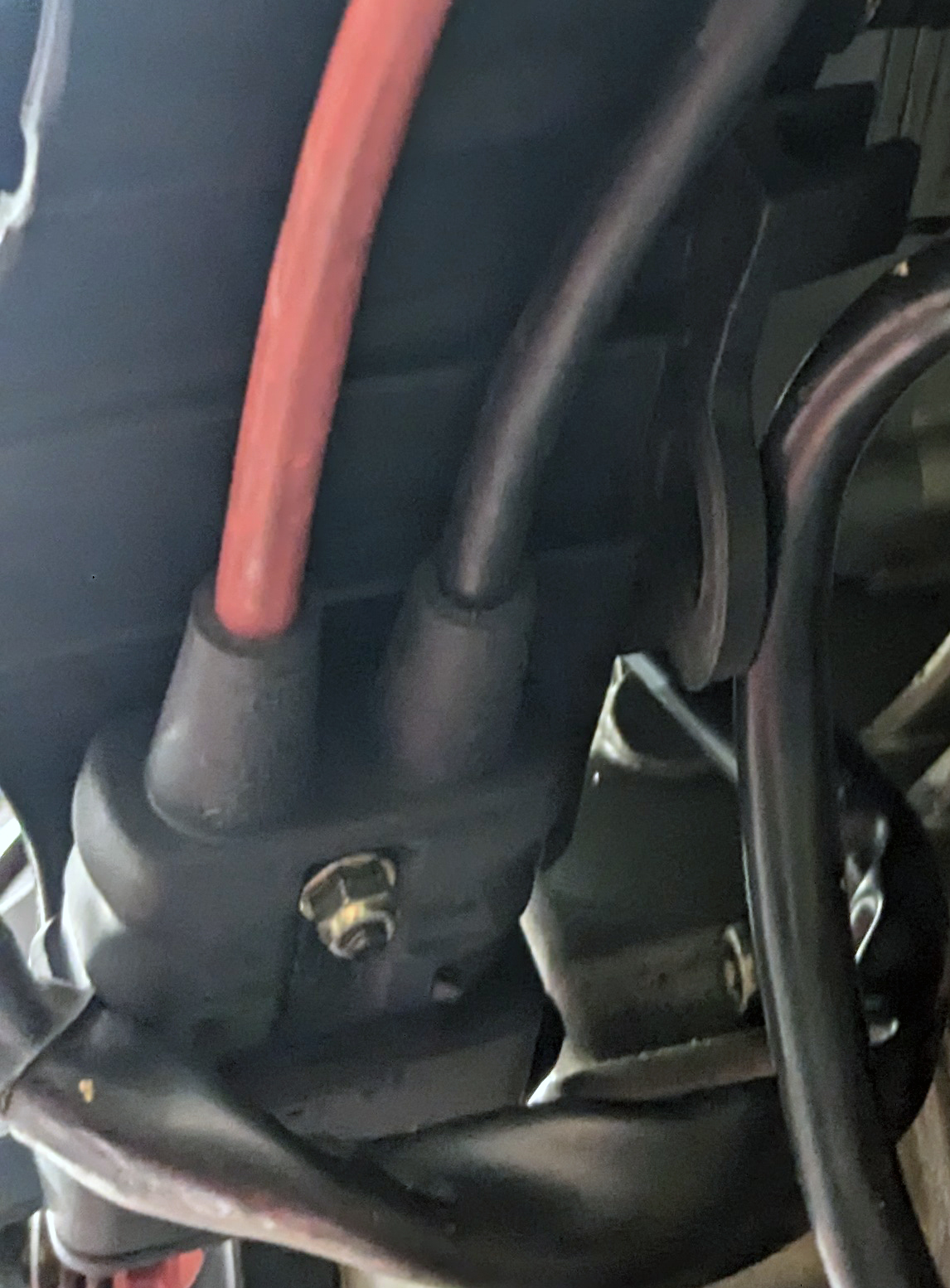

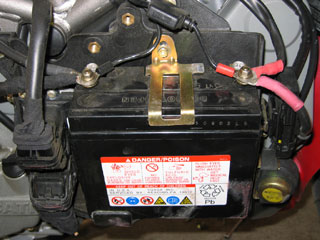

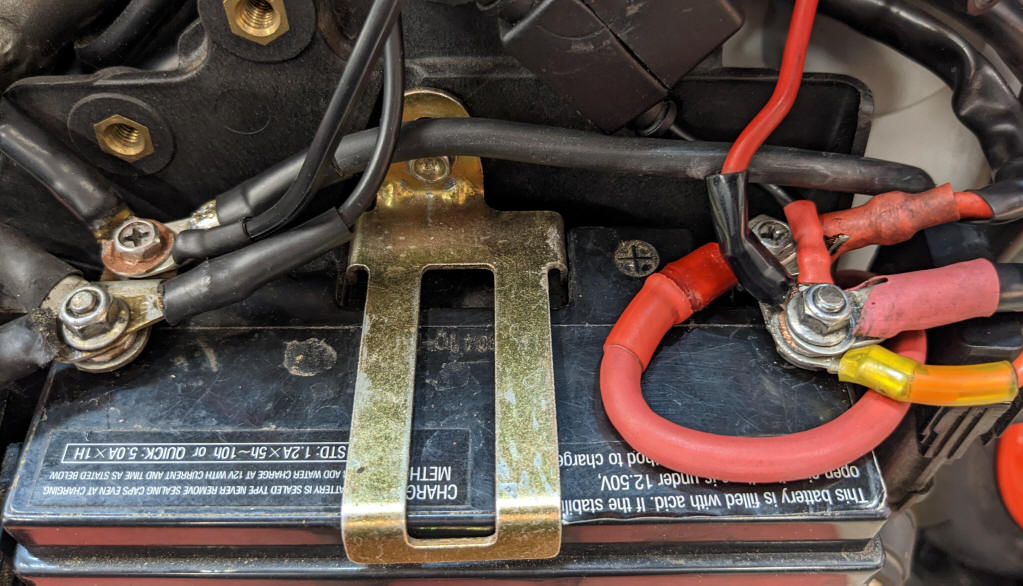

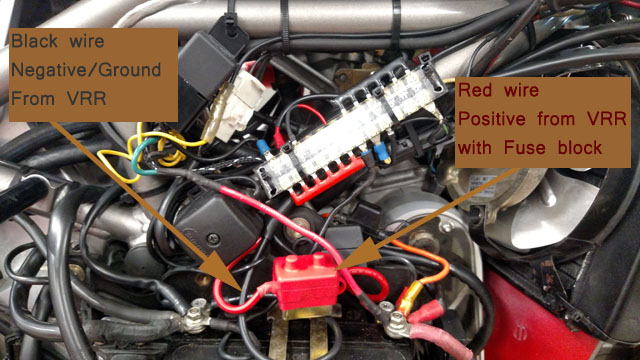

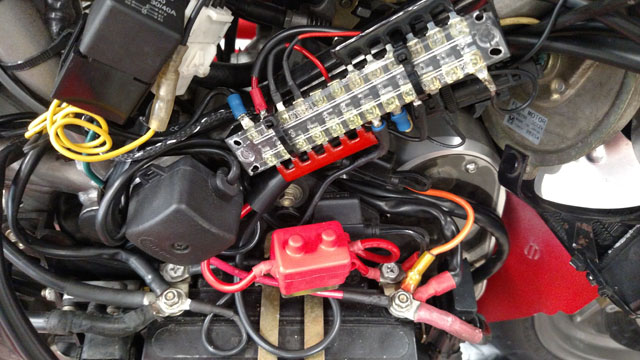

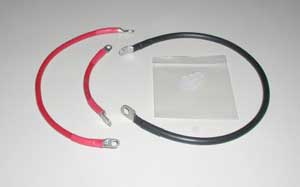

Below is the two wire VRR cable, Red with 50A fuse block and and black wire fixed to the Battery terminals.

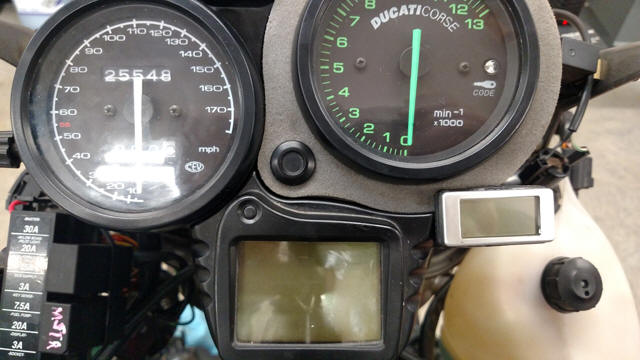

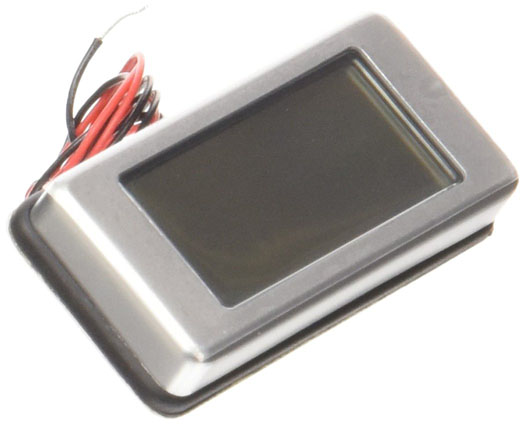

Lascar-EMV-1200-Powered-Voltmeter (purchased from Amazon)

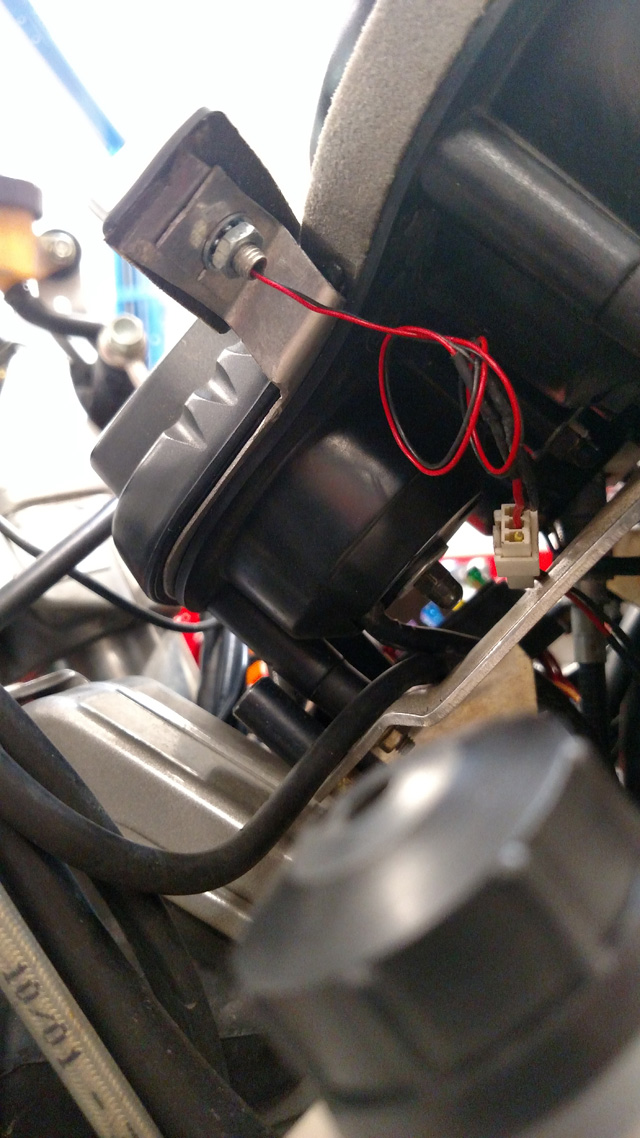

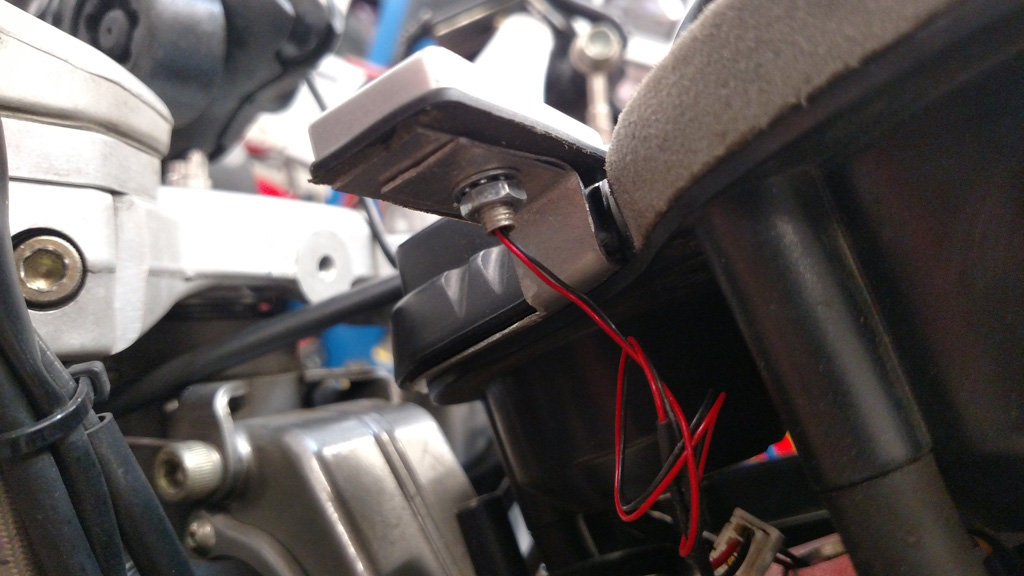

Made a bracket from aluminum by cutting a sheet metal ring that goes around the LCD display and has a wing to the right, for the volt meter to bolt through, photos below.

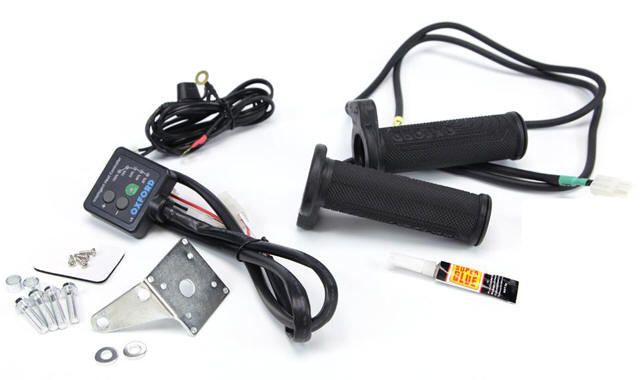

Installed Oxford Heaterz, heated sports bike grips, electrically connected to ignition switched power at the fuse panel, left of instrument cluster.

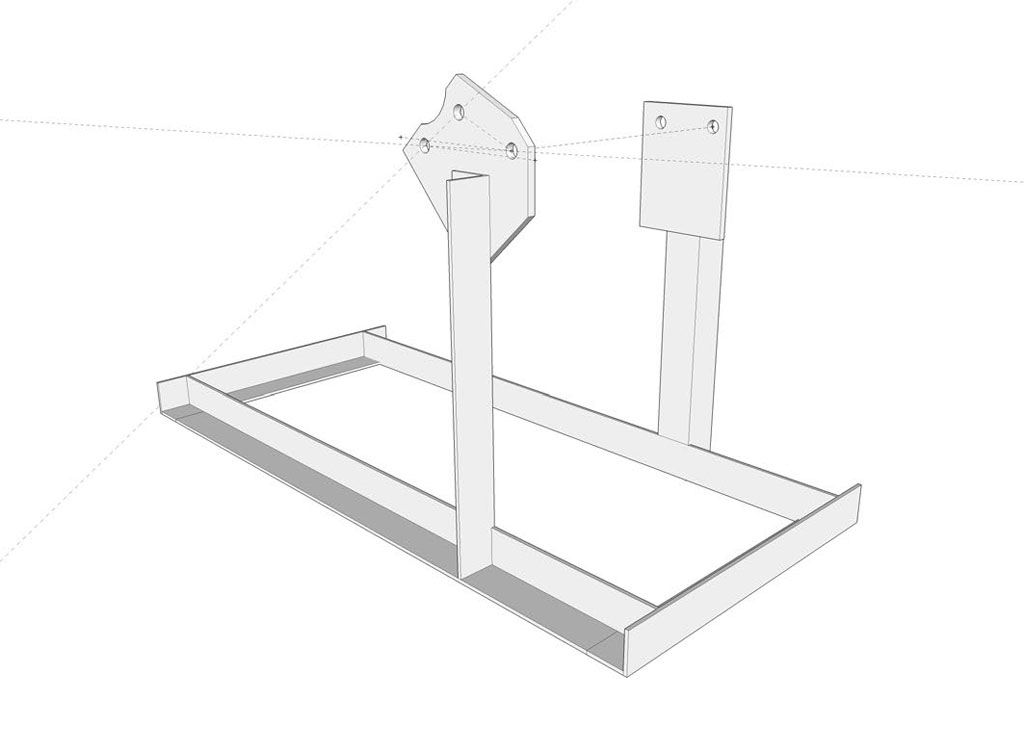

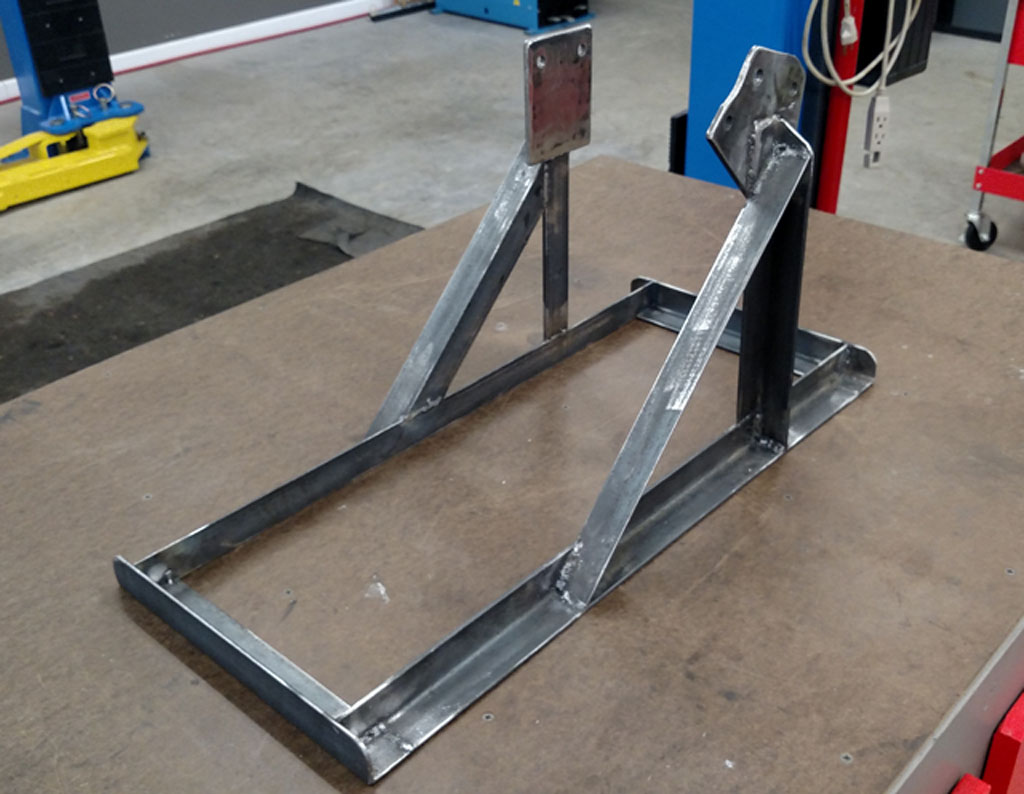

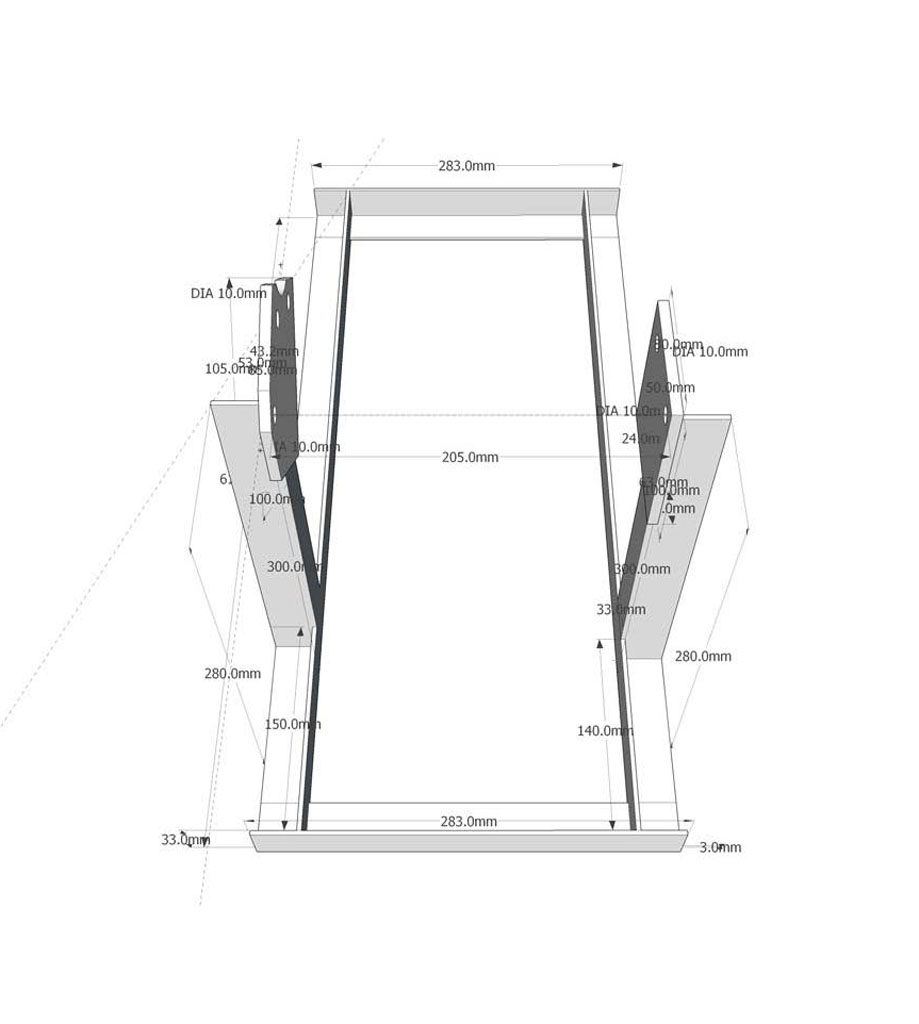

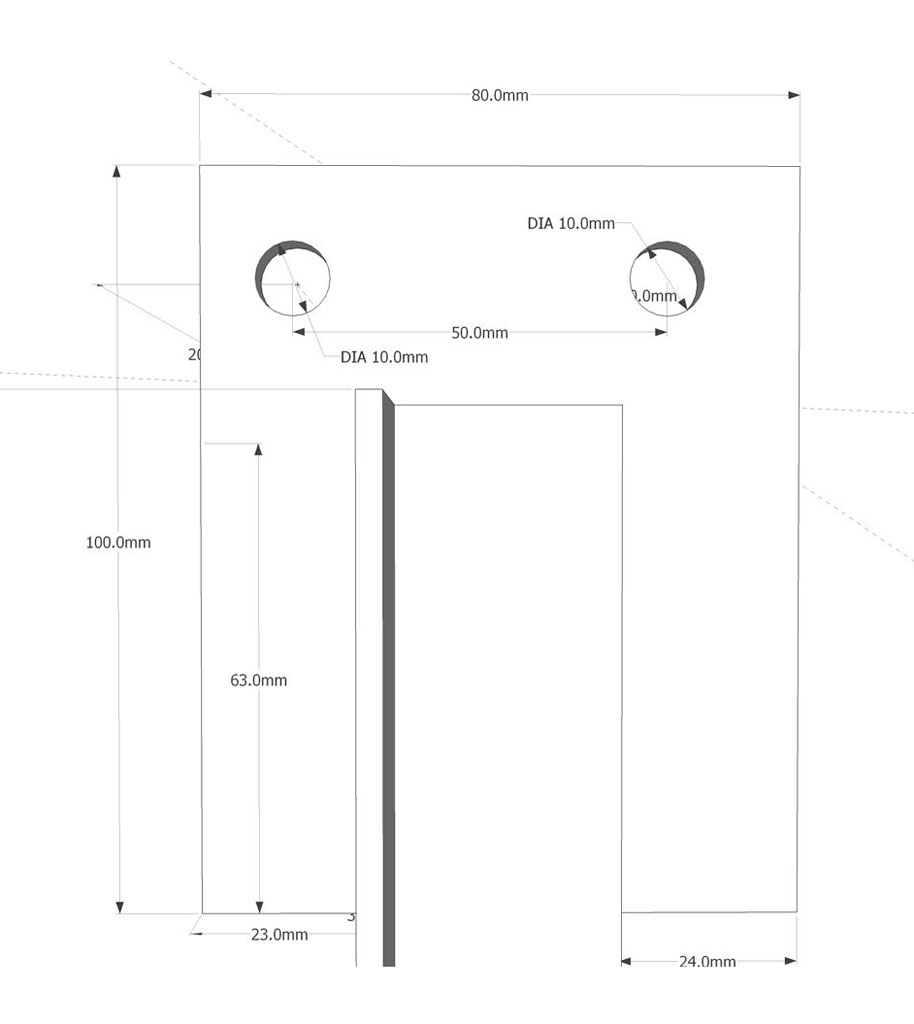

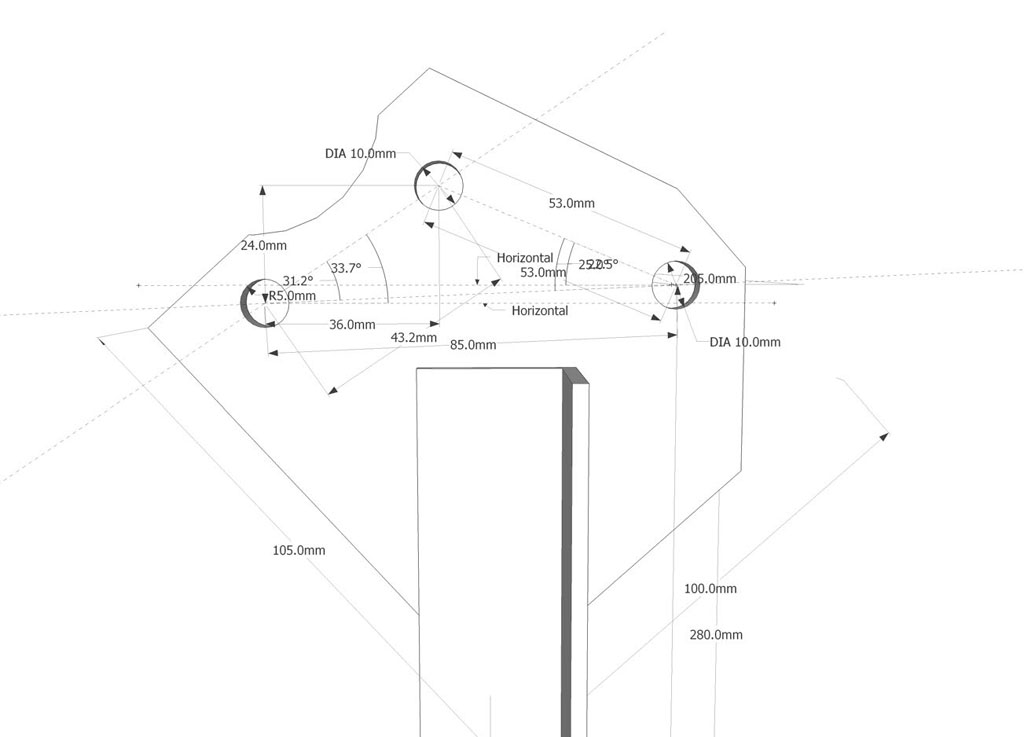

I designed and fabricated this stand to hold Ducati Engines out of the bike. I used 1-1/4" - 1/8" angle and 1/4" thick steel plate. All mild steel A36. All angle joints coped and assembly is MIG welded.

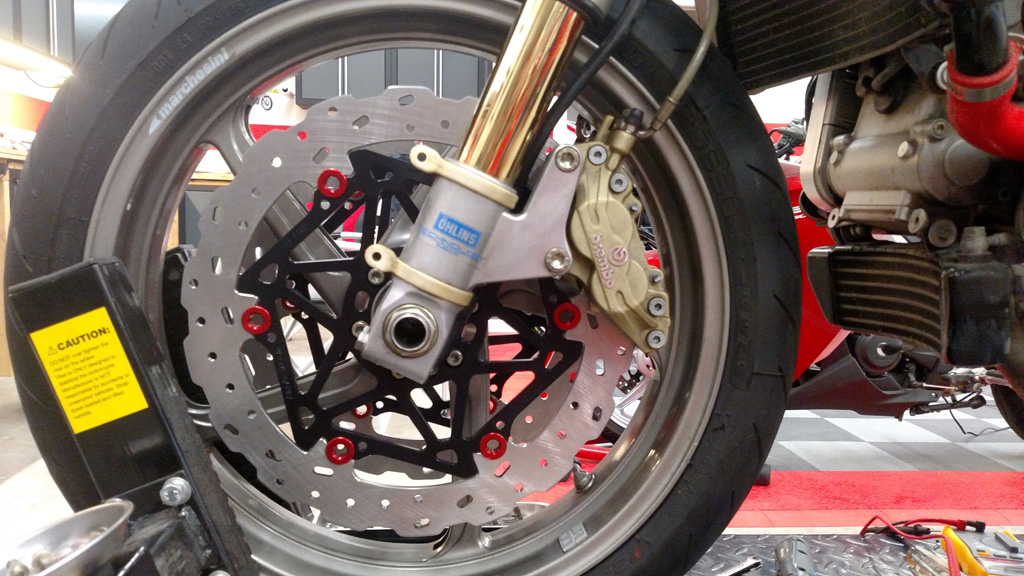

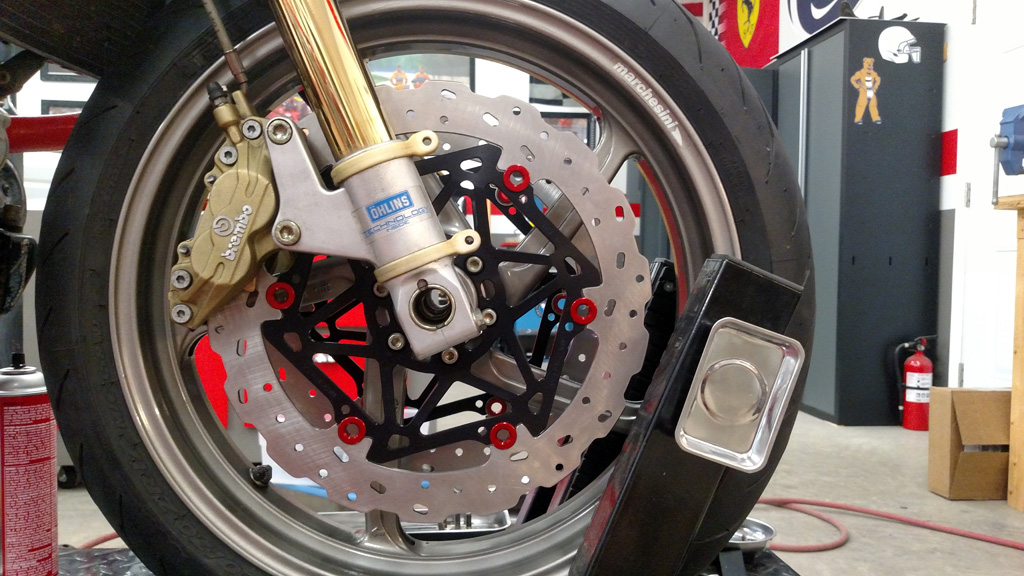

BrakeTech AXIS Cobra Stainless Steel Series: 748-998, 851-888, SS, ST, Sport Classic, Monster (PN: BTD-10.S) with FERODO ST Front Sintered Brake Pads: Brembo Dual Pin (PN: FDB2042ST - X-3)

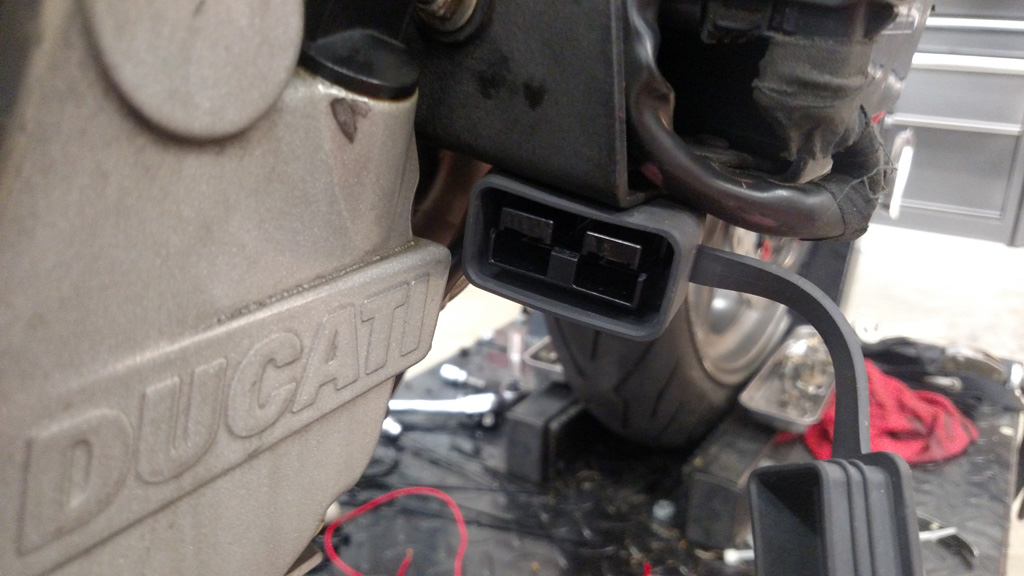

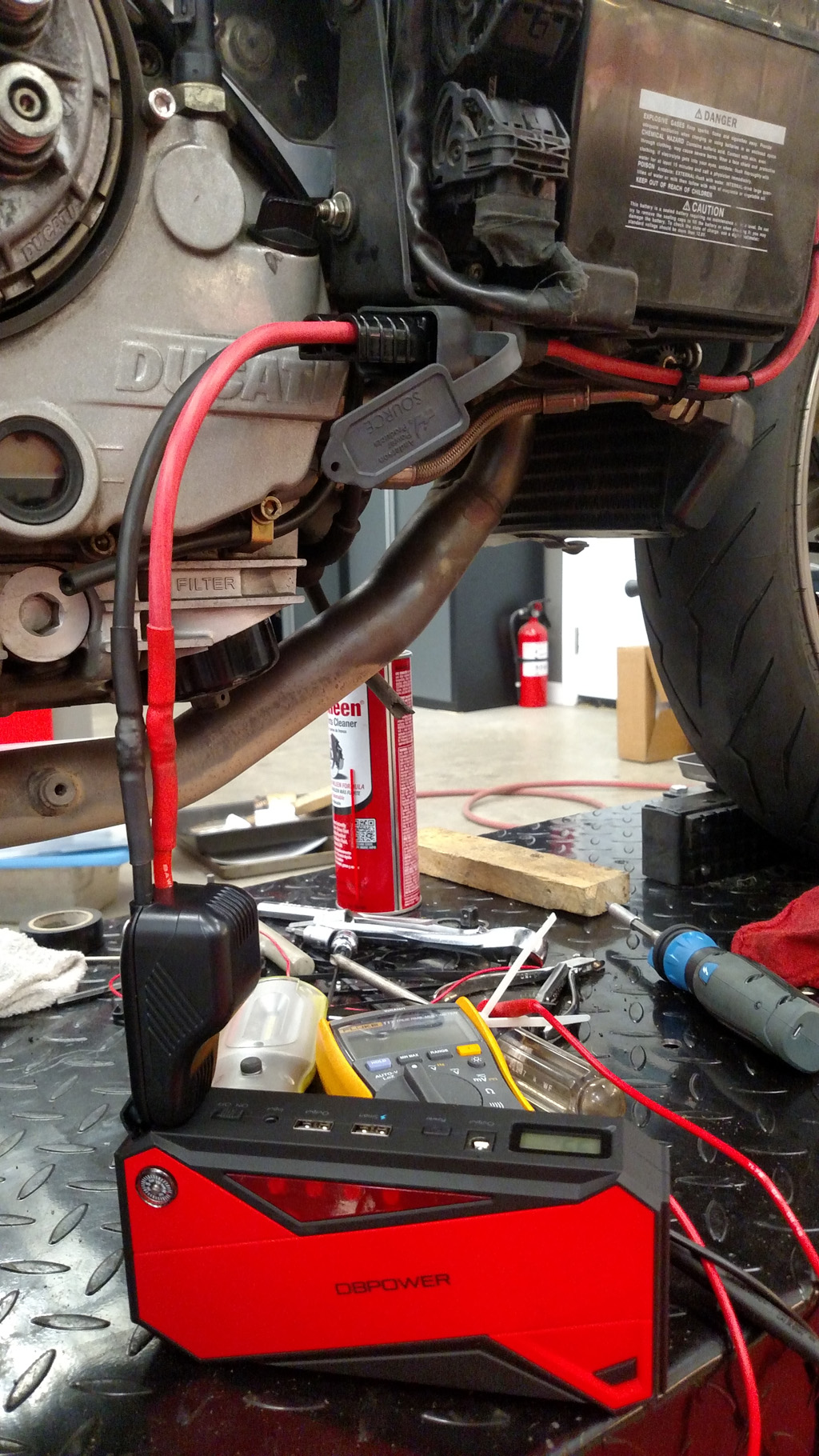

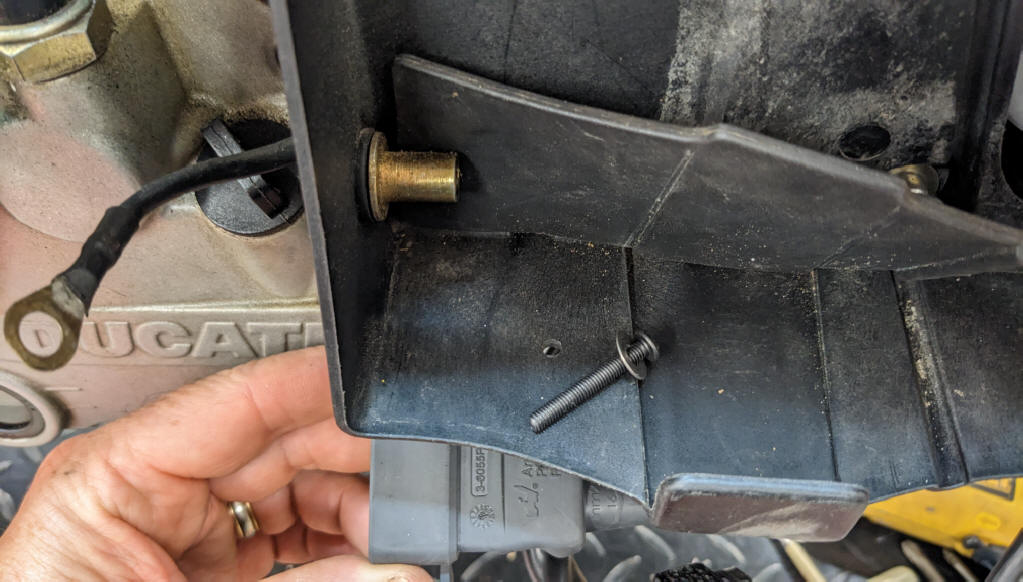

SB50 SB Series 50 Amp Anderson Powerpole Kit (Color: Black, Gauge: 8) SB50-08-BLK
SB50 Environmental Boot with Cover, Source Side 3-6055P2
